Package Includes:

6" 150mm Linear Actuator

Input Voltage: 12V DC	Max. Load: 1500N/330lbs/150kg
Stroke Length: 6 inches (150mm)	Duty Cycle: 25%
Protection Class: IP65	Material: Aluminum alloy
Low Noise: db<45 (A)

12" 300mm Linear Actuator

Input Voltage: 12V DC	Max. Load: 1500N/330lbs/150kg
Stroke Length: 12 inches (300mm)	Duty Cycle: 25%
Protection Class: IP65	Material: Aluminum alloy
Low Noise: db<45 (A)



ECO-WORTHY 195W N-Type Bifacial Solar Panel for Off-Grid Power

Rated Power: 195W	Solar Cell: Monocrystalline Silicon N-Type
Maximum/Peak Voltage(Vmp): 20.2V	Open Circuit Voltage(Voc): 21.2V±3%
Short circuit current: 11.60A±3%	Maximum current: 9.65A
Connector Type: MC4	Module Efficiency STC[%]:19.60%
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +80℃
Frame: Aluminum alloy frame	Weight: 10.5kg/23.15lbs
Size: 58.86x26.18x1.37in (1495*665*35)	1480X 670X 35 mm

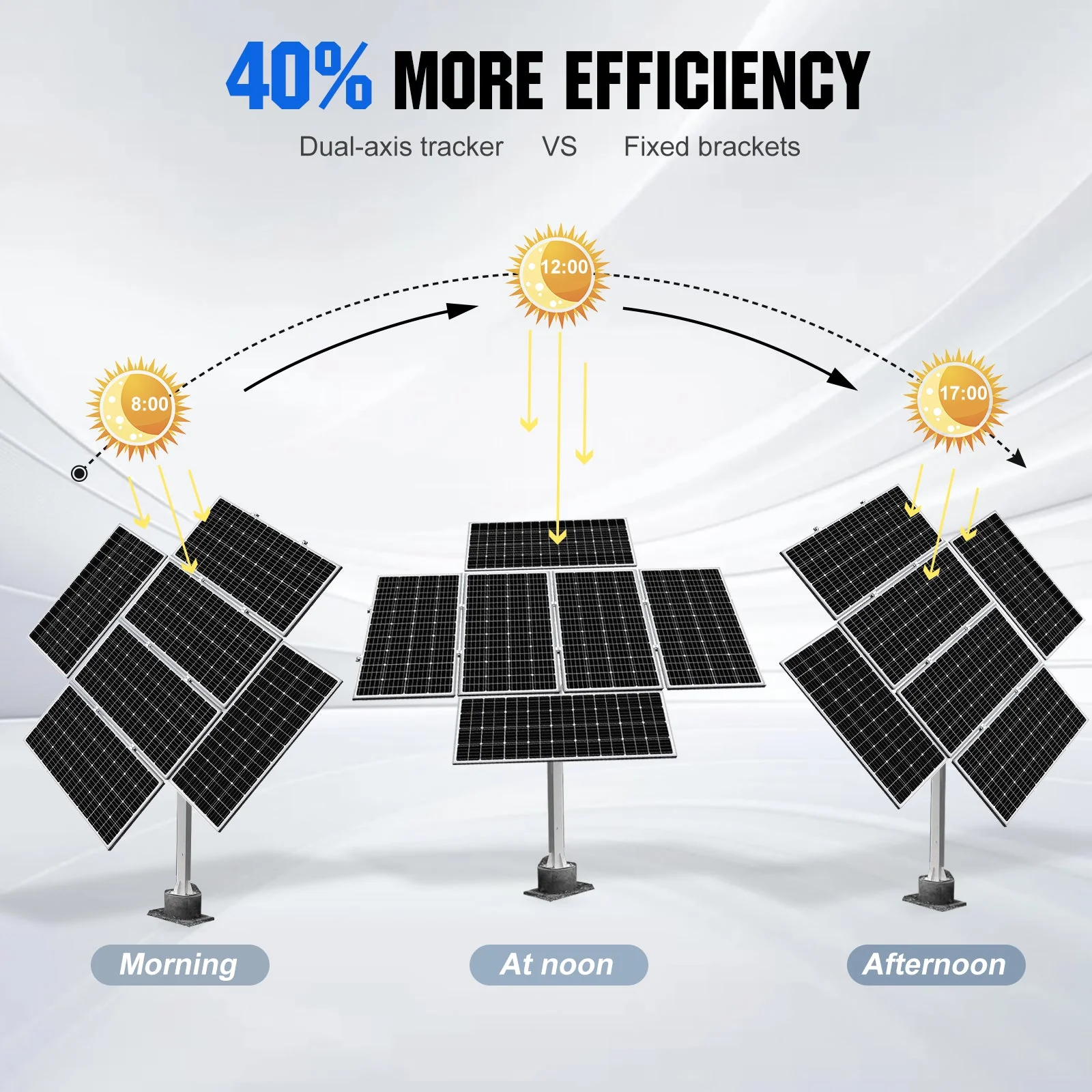

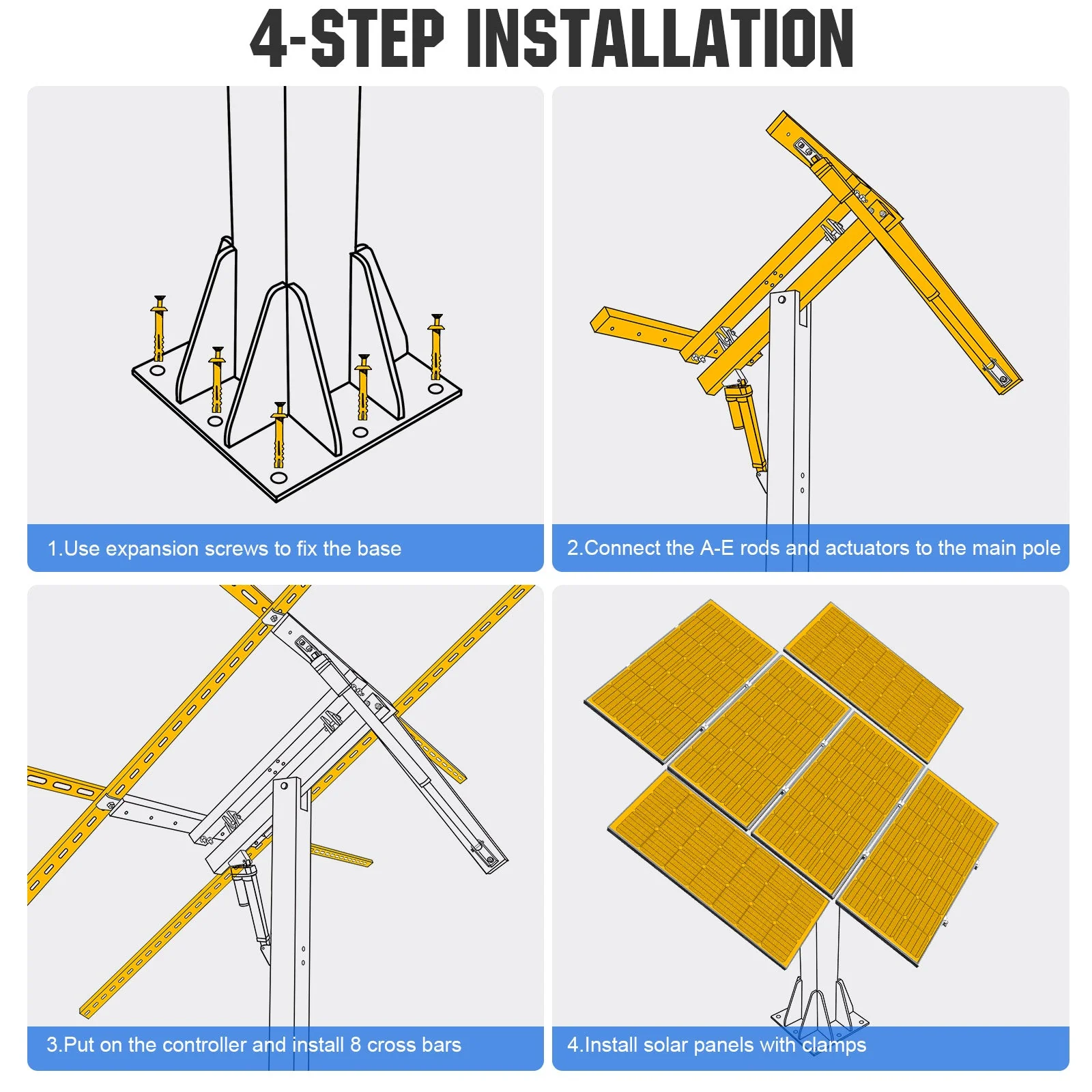

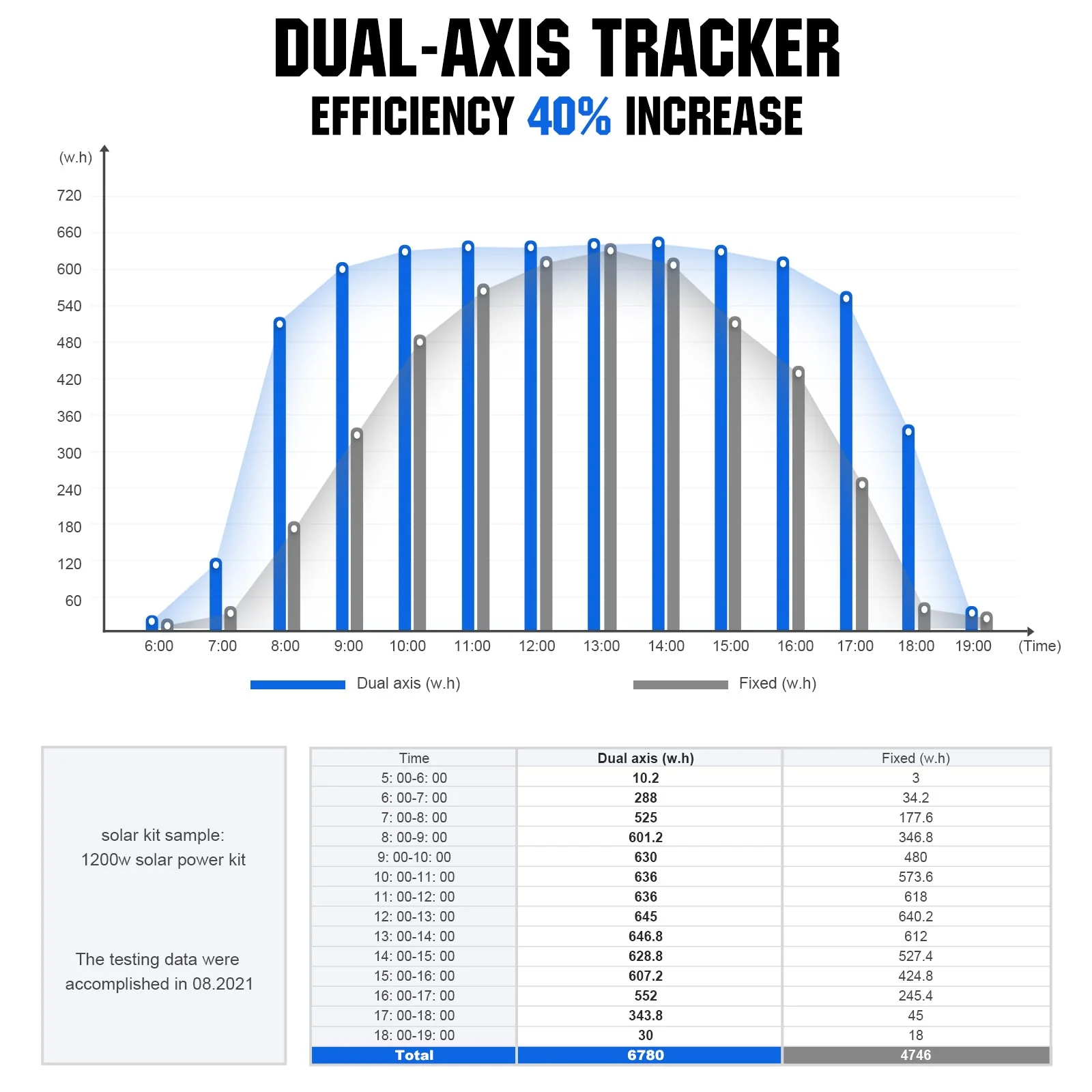

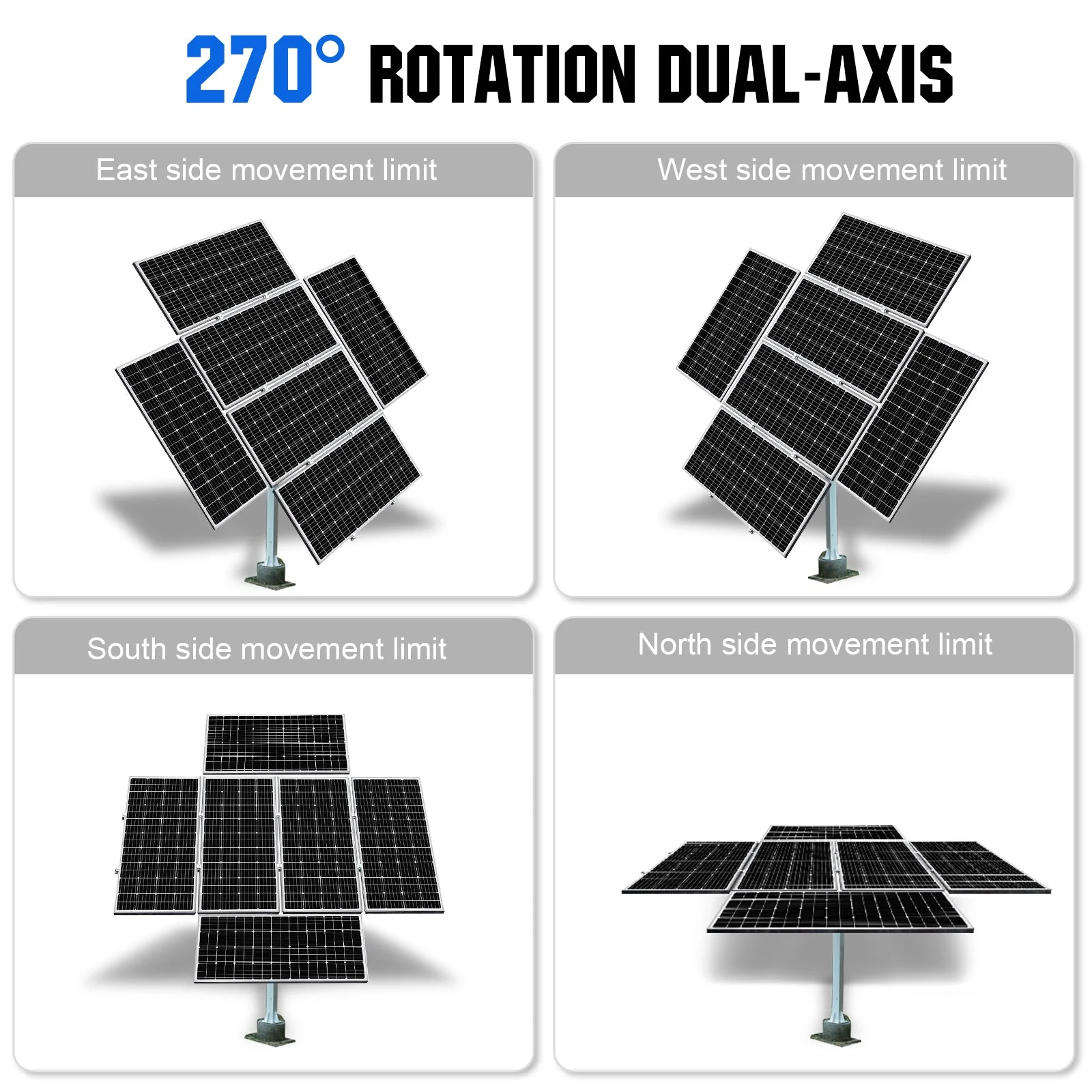

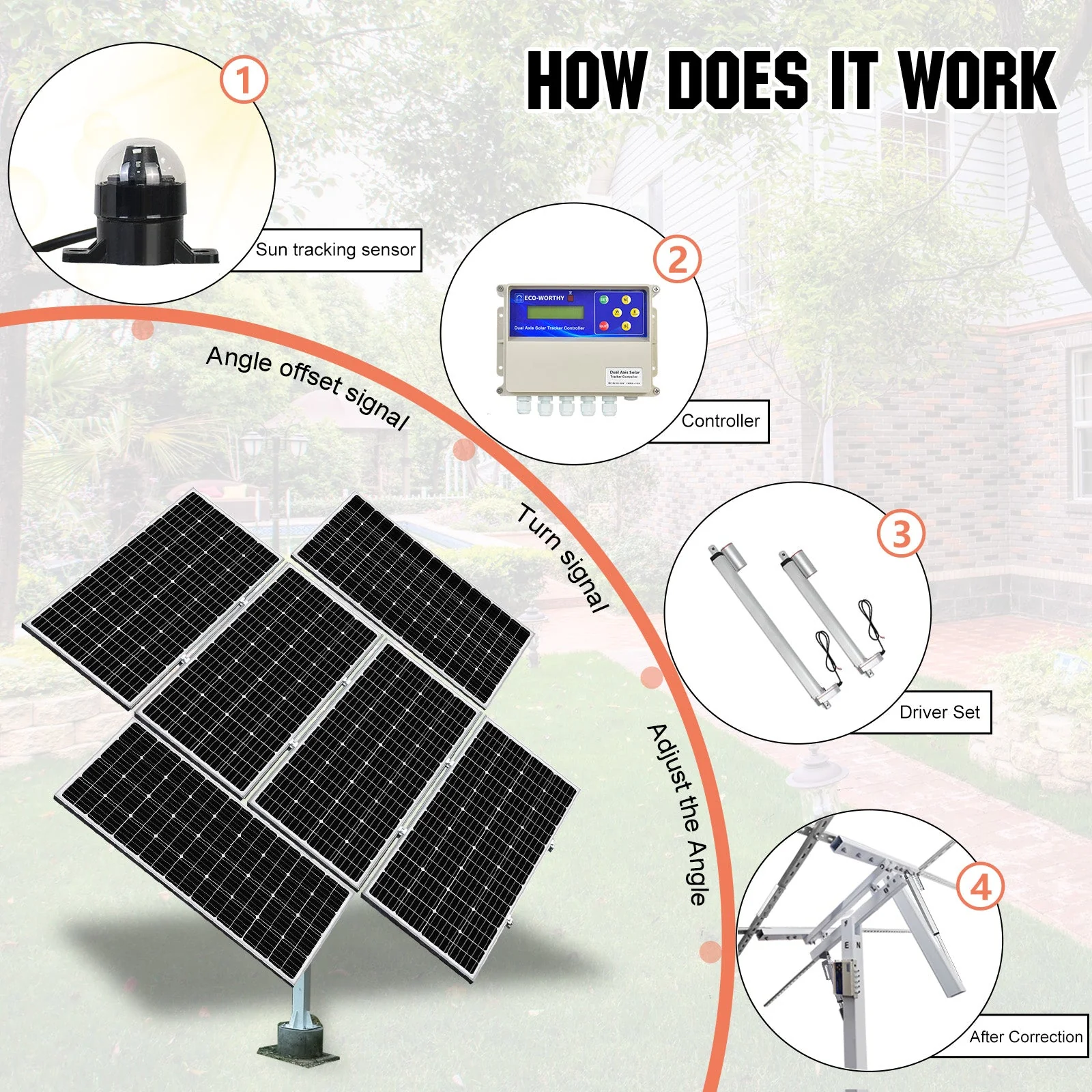

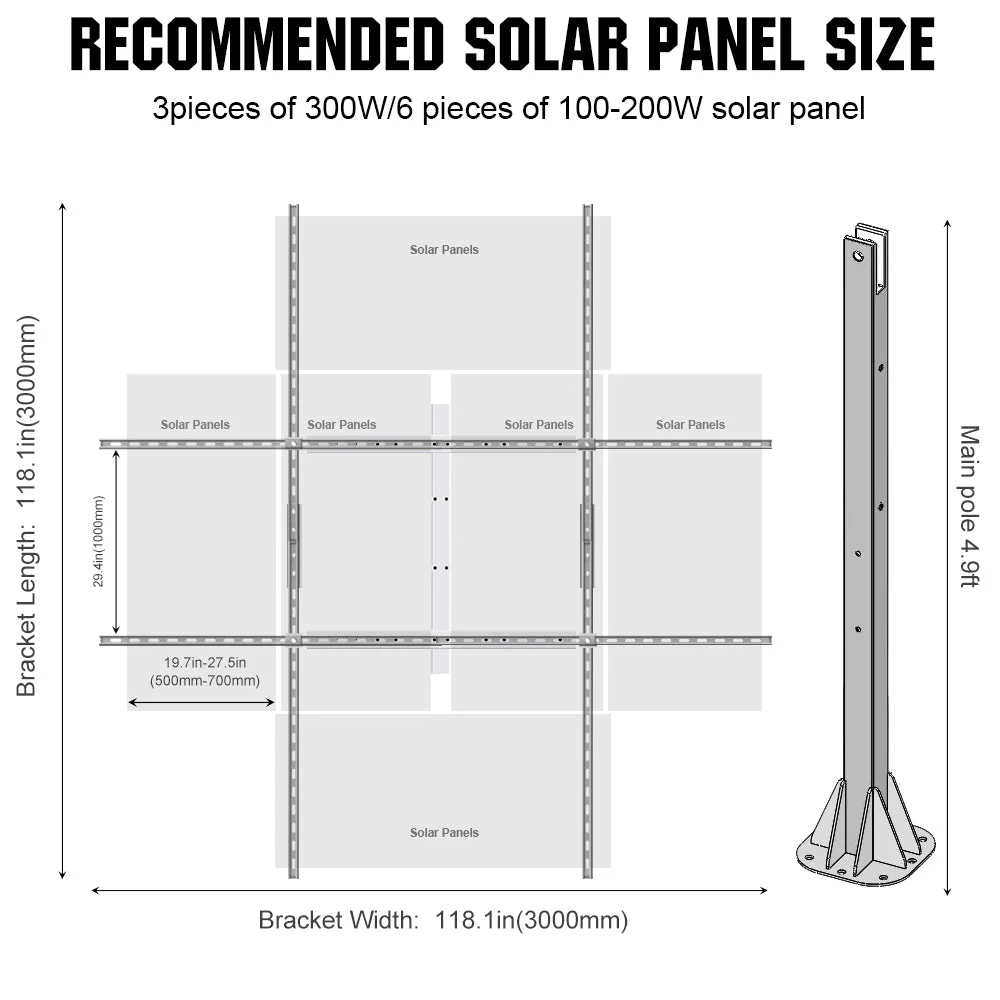

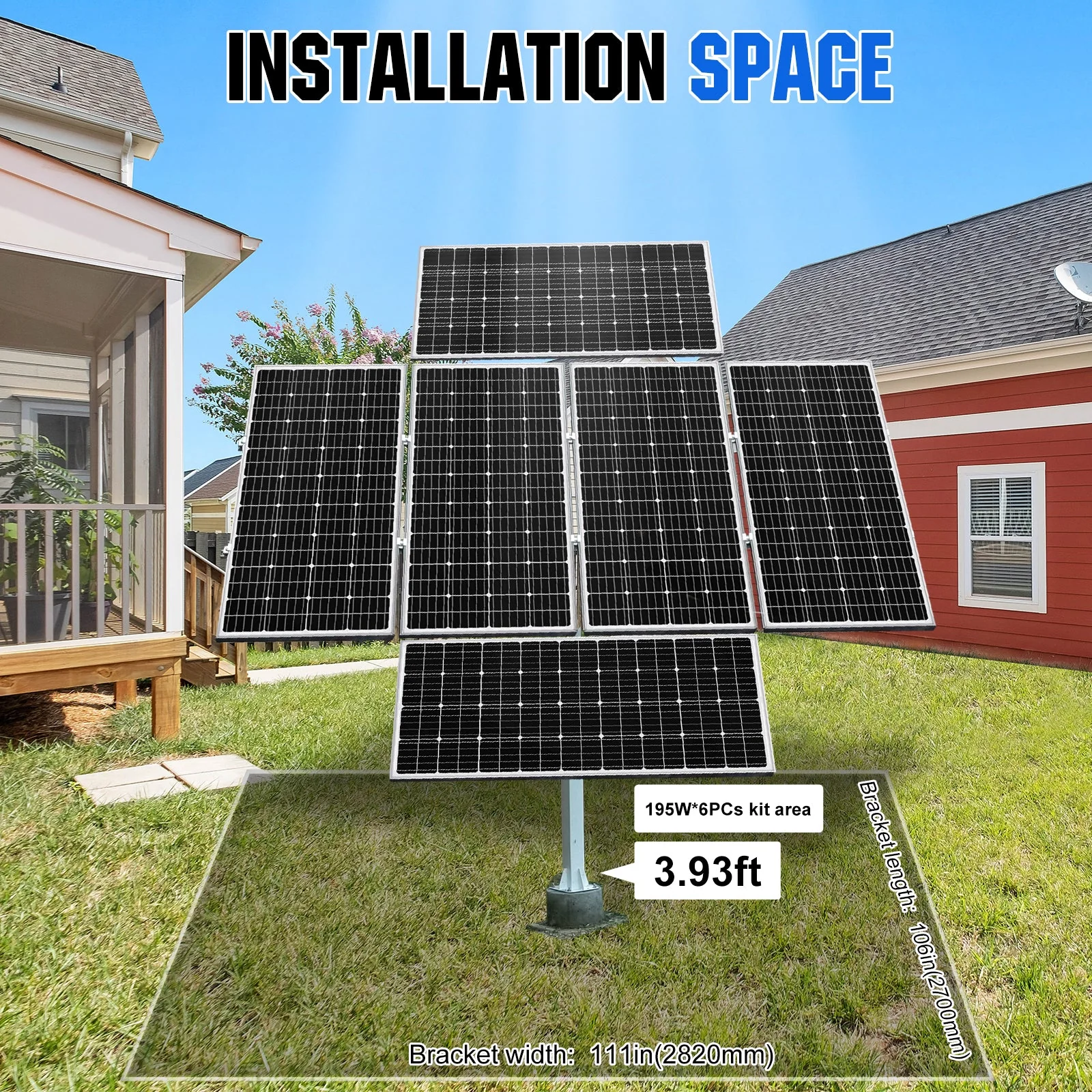

Dual Axis Solar Tracking System

SolarPanelSuitability	100W	200W	400W
Quantity	6PCS	4PCS	2PCS
Width	<585mm	<690mm	<1300mm

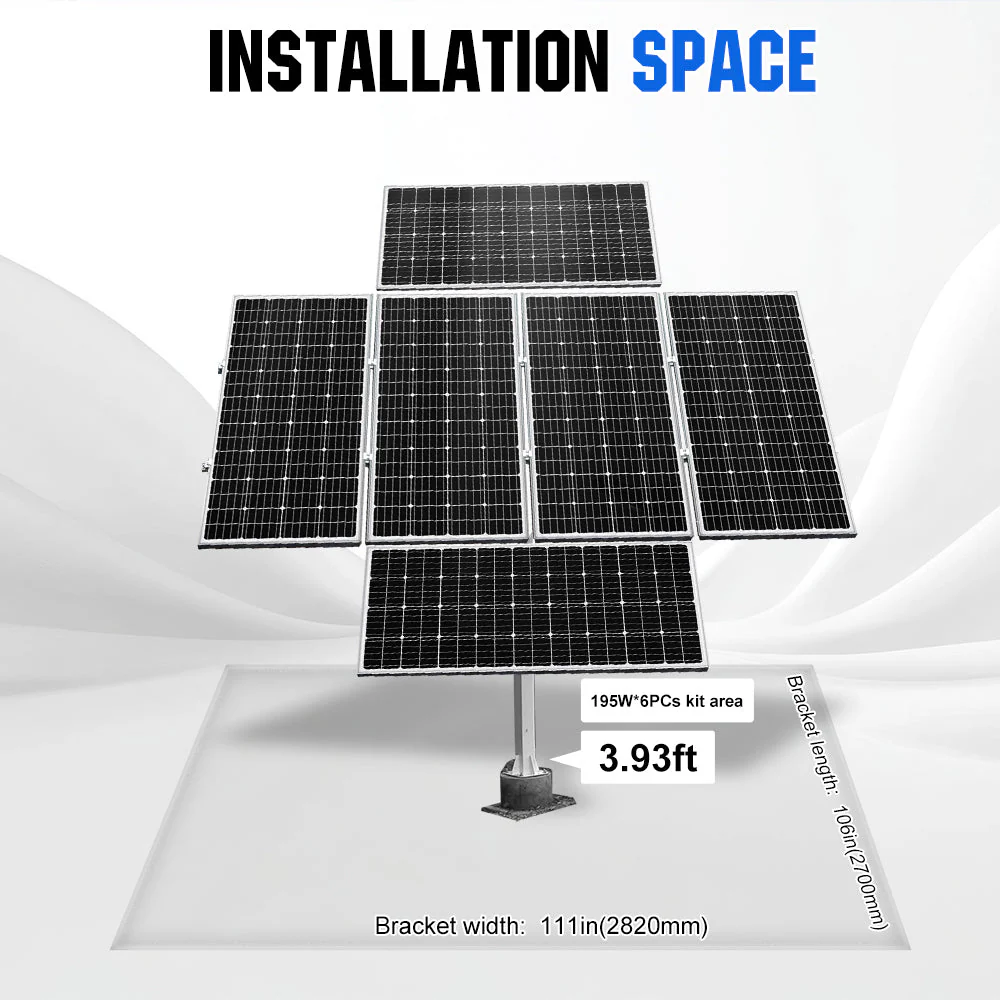

Item Weight:94lbs	Max load:150kg

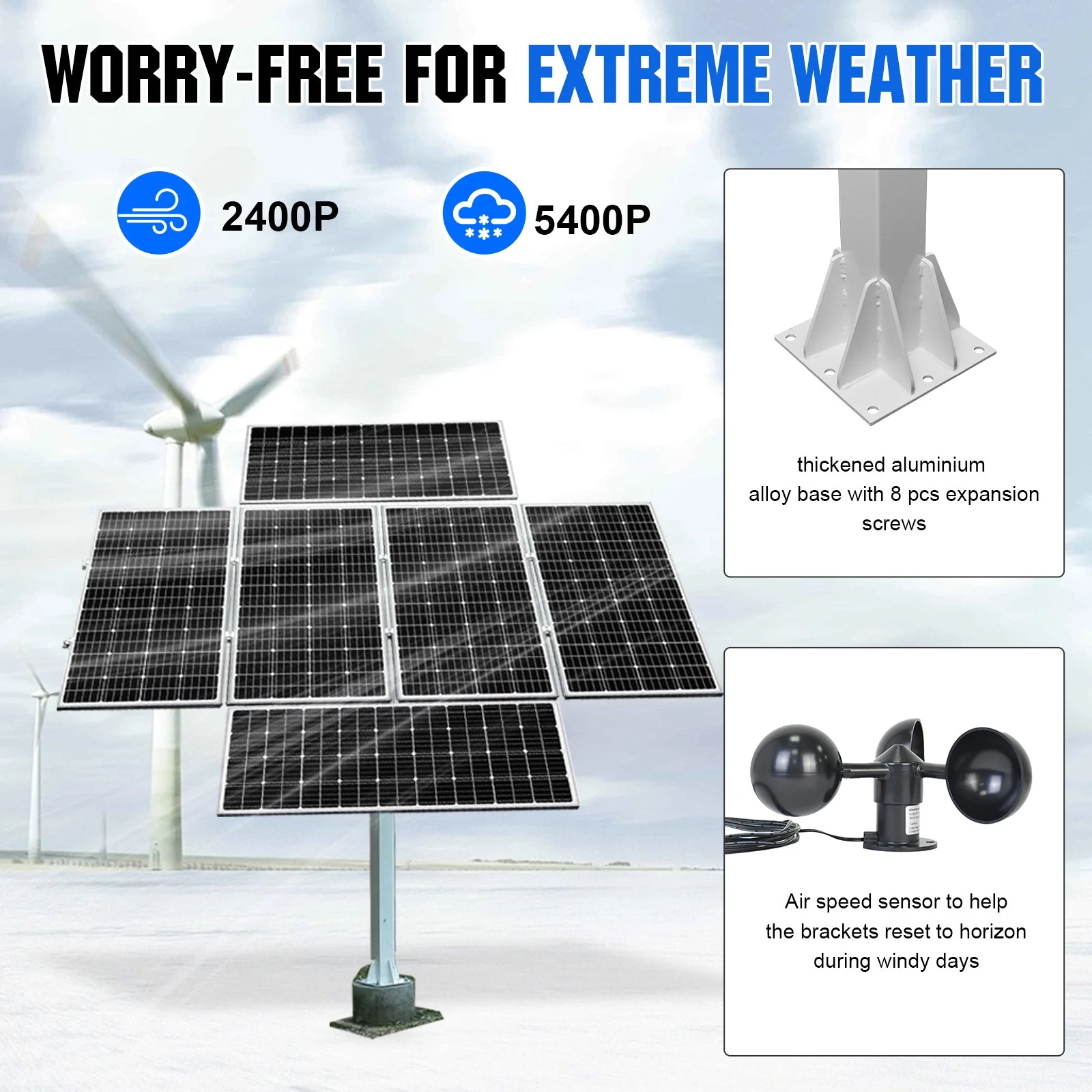

Product Dimensions:	110 x 110 x 64 inches	Max wind speed:	17.2m/s
